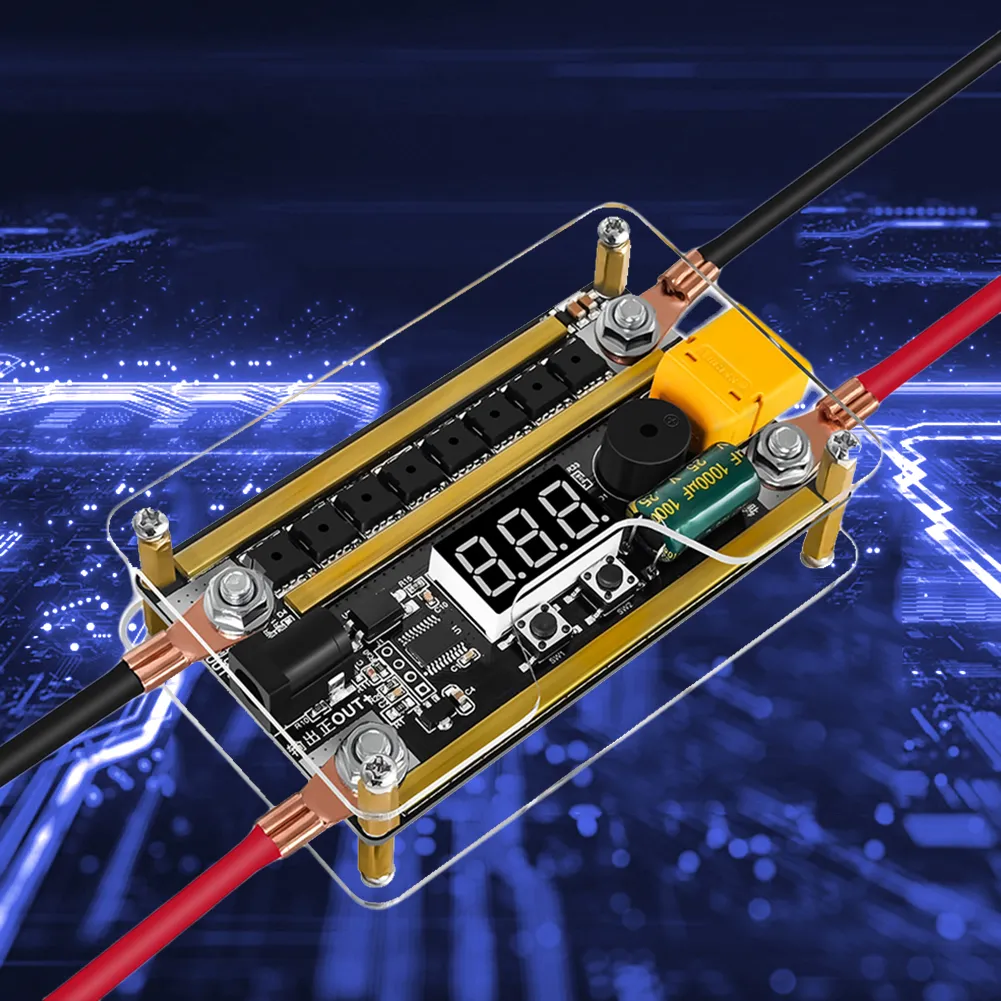

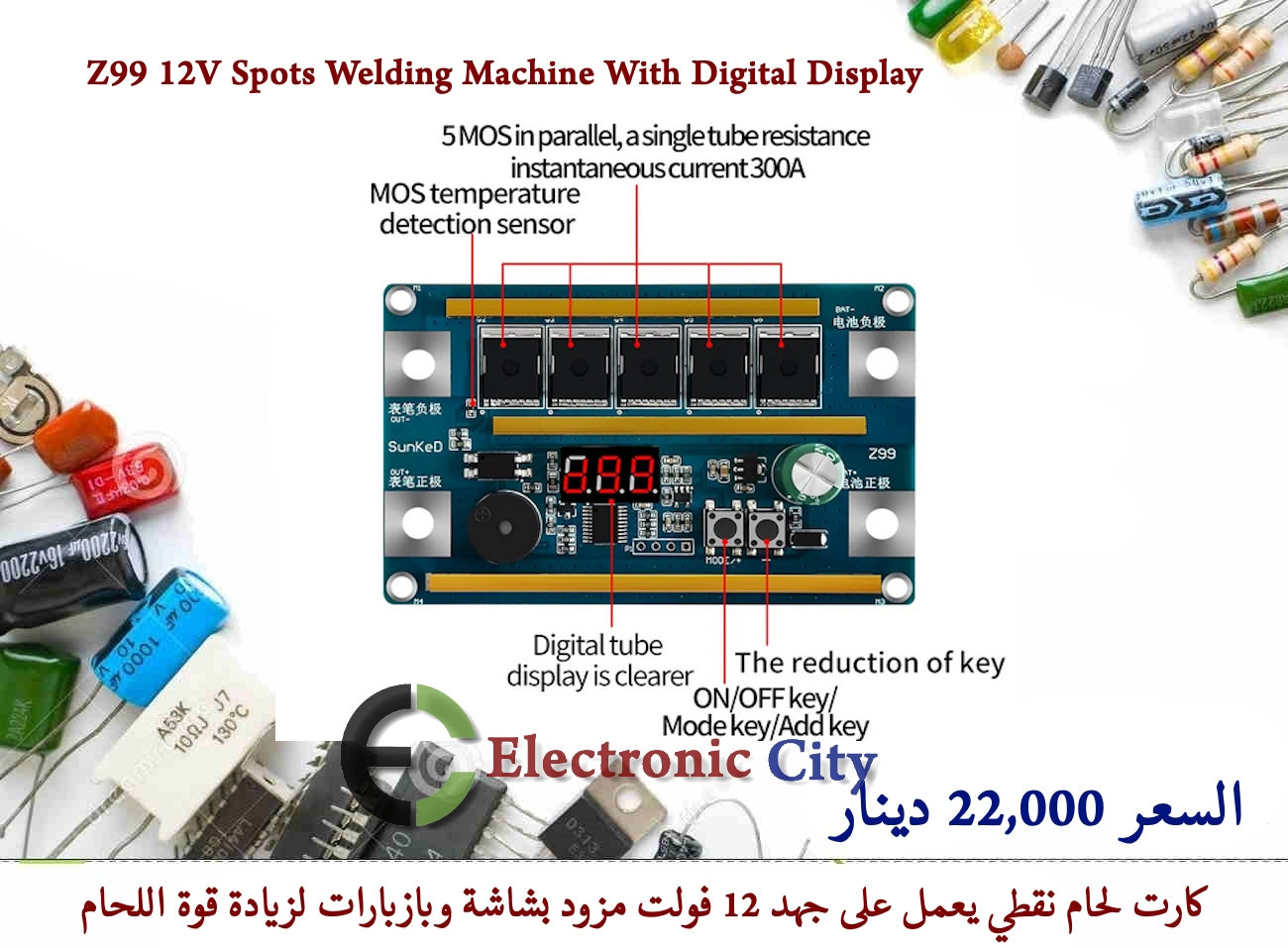

Z99 Spot Welder Circuit Board With 3 Digit Digital Display

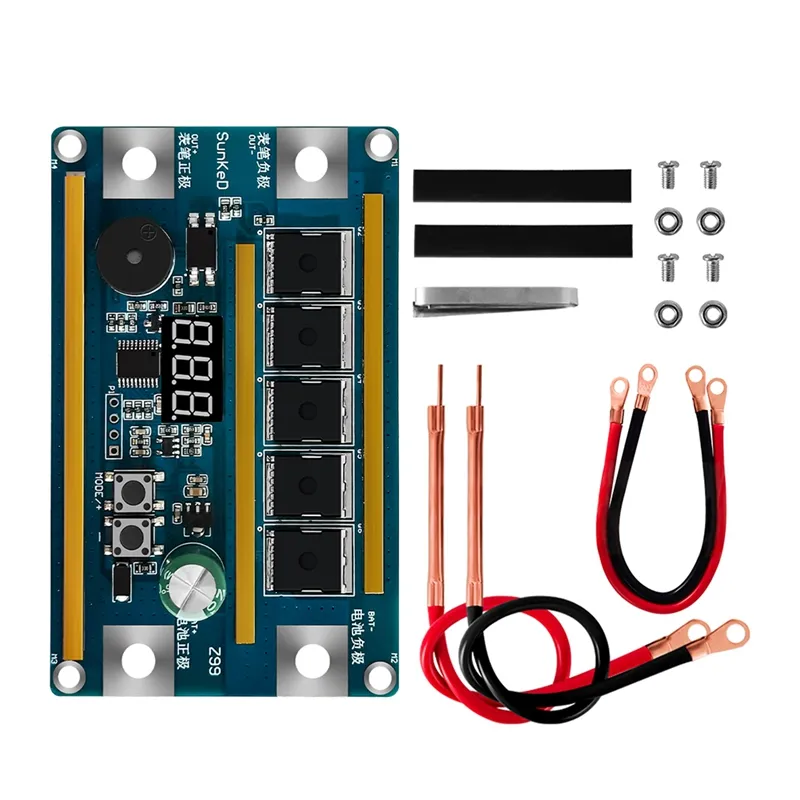

Protections - is our priority, which is why the Z99 spot welder is equipped with multiple protections. Diy battery Spot Welding Machine, Homemade Spot Welder with automatic This remarkable combination significantly boosts the spot welding process, allowing for faster project completion and superior results. Z99 Spot Welder 99 Gears 1500A 0.1-0.2Mm Spot Welding MOS 18650 Lithium... Diy 12V Spot Welding Kit Control Board DIY Nickel Plated Lithium Real-time voltage monitoring ensures you always remain within a safe of 8 to 17V, while an alarm is displayed for quick identification of any issues. High Efficiency - Experience high efficiency with the Z99 spot welder's 10AWG welding wire and oxidized copper spot welding needle, specifically designed to provide excellent overcurrent capacity and -lasting durability. packing list: 1 x Circuit Board 2 x Connection Cables 2 x Heat Shrink Tubes 4 x Nuts 4 x Screws 1 x Bar 2 x Spot Solder Pens Notice: Gear down or function setting: 1., As gear reduction key: In the main interface, press it, reduce 1 gear (fine adjustment)., 2., As function setting key: Long press to enter to the setting menu (please do not move the setting if not necessary) Gear up or down., 1., As gear up key: In the main interface, press to add 5 gears (coarse adjustment) 2., As switch key: Long press the key to turn off the power, long press when the power is off to turn on. User-Friendly Design - Designed with the user in mind, our Z99 spot welder features bilateral leads for easy spot welding, helping to easily identify the product and avoid misconnection. This intuitive design allows effortless adjustments and ensures precise control over your welding tasks, enhancing your overall experience. can be welded firmly. 1., Powerful Function: Spot welder support 0., 1 to 0., 2mm thin plate spot welding, welding and welding joints more thorough., 2., Design Intention: Bilateral lead for easy spot welding, product identification to avoid misconnection, 99 gear power adjustment, digital tube real time gear display., 3., Multiple Protection: Real time voltage monitoring protection will display UE alarm code when the voltage is not in the range of 8 to 17V. Thanks to its efficiency, you can confidently tackle even challenging welding tasks. Spot Welder For 18650 Batteries Z99 Board With 3 Digit Digital Display Spot Welder Circuit Specification: Item Type: Spot Welder Model: Z99 Material: PCB and Copper Use: 26650 32650 lipid battery welding, portable, stable and reliable Real time voltage monitoring: Voltage not in the range of 8-17V, will display EU code alarm Working Voltage: 12V DC Real Time MOS Tube Temperature Alarm: If MOS tube temperature exceeds 45°C, CE alarm code will be displayed Wire: 10AWG Welding Current: 1500A maximum Standby Power Consumption: Weld Nickle Thickness: 0., 1 to 0., 2mm Gear: 99 gears Display: 3 digit digital tube display Power supply requirements: 1., Acid battery 12V20 to 40AH., 2., Model batteries or large single, 3S to 4S, capacity (AH) X discharge rate (60C is the discharge rate of 60) between 100 to 300 is more appropriate., 3., 12V car EC5 interface start, the current should not exceed 600A., 4., Prohibit the use of switching power supply, transformer, charger, water battery to the spot welding machine power supply, will damage the spot welding machine control circuit. Real time MOS tube temperature protection will show CE alarm code when the temperature exceeds 45 Celsius degrees., 4., High Efficiency: 10AwG welding wire, oxidized copper spot welding needle, to ensure over current capacity and durability, greatly improving the efficiency of spot welding., 5., Large Capacity: Spot welder circuit board uses 5 MOS tubes, the maximum spot welding current can reach to 1500A.
